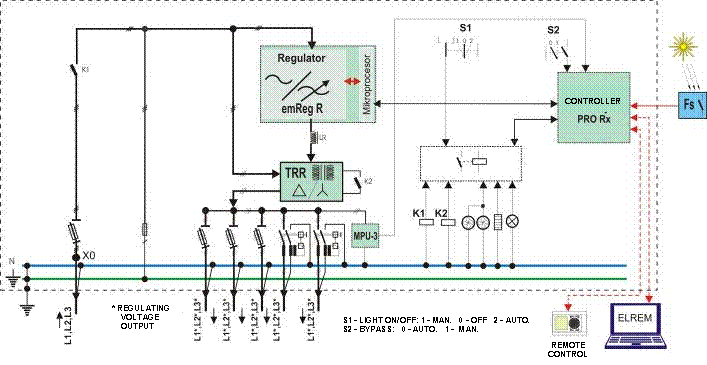

Outdoor and indoor lighting regulation switch & distribution cabinets ELREM PRO-RRx equipped with three-phase electronical (IGBT AC chopper) lighting regulator  of new generation emReg-R 3x400V and transformer TRRn 400/42V, are designed for switching & three-phase coupled, contactless and continuous/leveled regulation of voltage/lighting flux on public lighting installations realized with HID (high intensity discharge-HighPressureSodium, metal-halide) lamps. Fan-out capacity is 1-6 three-phase cables. The cabinet is produced according to design or upon the user's  demand.

             The function of regulation of relative lighting flux intensity is continual in standard (extended range on demand) range 50% (60% for metalhalide) -100% of relative intensity, or (on demand) with three discrete levels 100%, 75%, 50% with smooth level-changing with programmed intensity reduction intervals (22:00 -6:00), and three seasonal programs, all implemented in processor-controler PRO-RR with interactive man-machine interface-digital LCD and functional programmable keyboard. There is a function of adjusting the relative maximal level of voltage as 100% level (option – limitMAX), thus conditioning the maximal supplied voltage to regulated installation to apropriate level, that is independent of mains overvoltage-which benefits to bulb lifespan tremendously.



             The regulator has controlled temperature with active two-stage temperature limitation, as well as all neccesary protection: overvoltage suppression and two-stage overvoltage transients suppression by means of draining the exessive energy, very fast over- and short-current active protection (voltage regulator self-initiated and performed cut-off in 10-100us, self reset function, hand-shake protocols with cabinet processor), fault diagnostics and memory, with alarm signal (released by faulty condition or by triggering the highest level of protection) which initiates automatic bypass function controlled by cabinet processor.                                                                     Similar protections are integrated in cabinet switching equipment with adequate capacity and selectivity. This very high degree of protection pays itself by securing the constant functionality and supply of the lighting installation (uninterrupted and continous operation of facility in case of demage and failure) and a high level of protection of cabinet and installation equipment.

             This type of regulation is neutral  respective voltage shape and power-factor of lighting installation. The regulated output voltage is in shape equal to sinusoidal input voltage of the mains, practically unaffected with generated distortion (THDu < 0,2 % ), thanks to PWM regulation and very efficient filtering. The efficacy of the regulation is very good, better than 97%. Switching of the lighting can be various: switching in supply point, remote and locally by means of photo-relay( Fs).

             The standard functions are:

             -switching on/off by:

                                  -photo-relay (auxiliary equipment**)

                          -acc.to control program in the cabinet-controller PRO-RRx with interactive man-                                              machine interface-digital LCD and functional programmable keyboard. Switch on/off function is                           reserve mode of operation (acc.to annual sunrise/set table).

             -relative intensity regulation of lighting:

                          -PWM (pulse-width-modulated) regulation of voltage by series compensated ac switching of                            auxiliary transformer, phase-coupled(delta)

                          -not-influencing and undependant of the sine-wave shape and power-factor of  installation

                          -continual in standard range from 50% (60% for metalhalide) to 100% of relative intensity

                          -reduced intensity operation intervals are programmable and adjustable                                                            -user can adjust parameters by means of interactive man-machine interface of cabinet-                                  controller

                 -control and protection of the regulator:

                                  -processor- controller of the regulator, with diagnostics and memory of faulty/trip states

                          -active two-level control of temperature in case of overheating

                          -transient overvoltage atenuation and two-stage suppresion through excessive energy drain

                          -very fast active overcurrent and short-circuit protection (self-controlled and self-initiated                               current limitation and cut-off by regulator in 10-100us interval)

                          -selfinitiated reset, control and protection protocols with cabinet-controller

                          -fault signal (at fault and /or emergency state) which is interrupt demand for immediate                                   contactor override (bypass) of the regulator

             -control and protection of the cabinet:

                          -cabinet-controller PRO-RRx with diagnostics and memory of faulty/trip states, operation-                             hourcounters for each intensity

                          - bypass function-bypass mode of operation in case of fault or protection tripping

                          -controlled temperature-heating (100W with thermostat) and cooling (filtrated inlet of air and                            force- ventilated outlet with thermostat), alarm thermostat

                          -transient overvoltage atenuation and suppresion through excessive energy drain

                          -fast overcurrent and short-circuit protection, selectivity with distribution fuses

                          -double atenuation (filtering) of harmonic distortions and transients ( THDu < 0,2 % )

                          -protection system TN-C

             Standard outline:

                          -for open-air mounting (reinforced polyester cabinet-IP43, grounded metal parts, isolation                                casing

                          -nominal power outlines: mark x=1 – 3x2kVA;x=2 – 3x4kVA;x=3 – 3x7kVA;x=4 – 3x12kVA

             Standard delivery scope:

                          -fco production plant Rakitje, tested, packed, loaded, with test protocols, Certificates and                               Declaration of Conformity

                          -two-year guarantee with standard conditions for our products

                          -service and spare parts in guarantee period and next 7 years

             The additional(optional) functions are:

             -regulation locally:

                                       -PWM (pulse-width-modulated) regulation of voltage by series compensated ac                                                switching of  auxiliary transformer, phase-uncoupled (star)

                                       -extended range of regulation (min. 35%)

             - limitMAX = adjustable limitation of maximal operating output voltage in level 100%                          -              - stabMAX = stabilization of output voltage at level 100% on 230VRMS (or upon demand))

             - stabREG = stabilization of output voltage at level 100% on adjustable level and automatic                                                             adjustment of regulation range

             - saveENERGY-1 = saved energy is calculated by cabinet-controller on the basis of operation-hour                                                          counters and level of regulation (% of unregulated energy)

             - saveENERGY-2 = saved energy is calculated by cabinet-controller on the basis of signal from energy-                                             meter; an option with three-phase energy meter with pulse=f(energy) output.

             - system of protection is made according to design/demand (differential current relays, magnetic-termic                 circuit-breakers, thermic fuses with disconnecting bases etc)

             The additional(optional) outlines are:

                          -for indoor mounting (steel cabinet with polyurethane orr epoxy-coating-IP43, grounded metal                             parts)

                          -IP54 for all outlines

                          --nominal power outlines: mark x=2a – 3x5kVA; x=3a – 3x10kVA

             The additional(optional) delivery scope:

                          -free-at-border, tested, packed, loaded, with test protocols, Certificates and Declaration of                               Conformity

                          -testing of function after mounting and trial operation, issuing of protocols                                                       -service on demand during guarantee period

                          -regular service during guarantee period

             The additional (optional) services on demand:

                          -consulting for designers/consultants, investor technical stuff, maintenance personnel - lecture                             and practice



             The cabinets comply/conform to valid Croatian standards and regulations: HRN EN 50274:2002, HRN EN 60439-1:1999/A1:2004,HRN EN 60947-4-3:2005, HRN EN 61000-3-2:2001 i HRN EN 61000-3-3:1997 and valid regulations; and EU Directive 2004/108/EC. We issue production, testing and implementation certificates and declarations of conformity and quality after set-up and probe operation.





Technical data:



Nominal power: x=1—3x2kVA; x=2—3x4kVA; x=3—3x7 kVA; x=4 - 3x12 kVA

Supply voltage: 3x400/230 V,50 Hz

Supply voltage tolerance: 0,85 – 1,1 Un

Regulation range(span): PWM 0%, 50(60) - 100%  relative intensity (tungsten, halogen-12Vdc+230Vac, neon, NaV,HQI)

Regulation accuracy: +/- 0,2%

Total termic loss: < 3%

Ambient temperature: –25 to + 30 ^oC

Cooling:forced ventilation 30m3/h

Relative humidity: kl. F rel.h.(10-95%)

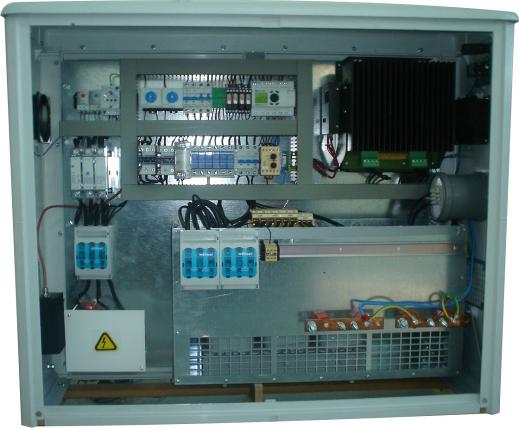

Cabinet:1130x1000x320 mm(reinforced polyester), IP43,mounting on base
