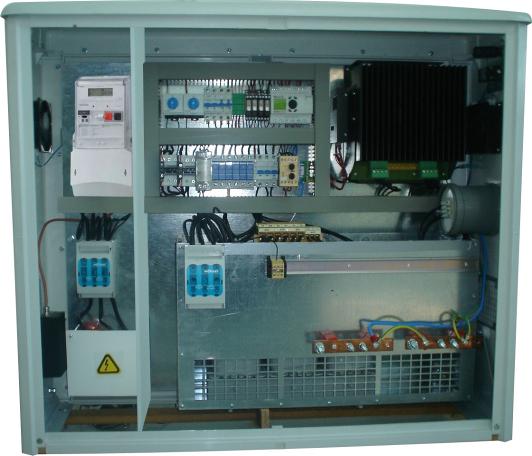

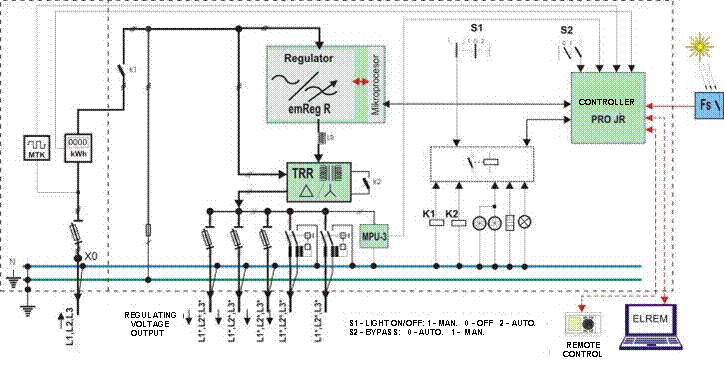

Public lighting regulation cabinets ELREM PRO-RJRx equipped with three-phase electronical (IGBT) lighting regulator  of new generation emReg - R 3x400V and transformer TRRn 3x400/42V ,are designed for switch&distribution and three-phase coupled, contactless and continuous/leveled regulation of voltage/lighting flux on public lighting installations realised with HID (high intensity discharge-HighPressureSodium, metal-halide) lamps. Fan-out capacity is 1-6 three-phase cables for street lighting and 1-3 auxiliary  outputs for various consumption (traffic signs, advertising panels etc.)

             The standard functions are:

             -switching on/off by:

                          -photo-relay (auxiliary equipment**)

                                  -tone-frequency relay (auxiliary equipment**)

                                  -acc.to control programm in the cabinet-controller PRO-JRx with interactive man-                                                          machine interface-digital LCD and functional programmable keyboard. Switch on/off function is                             reserve mode of operation (acc.to annual sunrise/set table).

                 -relative intensity regulation of lighting:

                                  -PWM (pulse-width-modulated) regulation of voltage by series compensated ac switching of                     auxiliary transformer, phase-coupled( delta)

                                  -not-influencing and undependant of the sine-wave shape and power-factor of  installation

                                  -continual in standard range from 50% (60% for metalhalide) to 100% of relative intensity

                                  -reduced intensity operation intervals are programmable and adjustable                                                                             -user can adjust parameters by means of interactive man-machine interface of cabinet-                                              controller

             -control and protection of the regulator:

                          -processor- controller of the regulator, with diagnostics and memory of faulty/trip states

                                  -active two-level control of temperature in case of overheating

                                  -transient overvoltage atenuation and two-stage suppresion through excessive energy drain

                                  -very fast active overcurrent and short-circuit protection (self-controlled and self-initiated                                          current limitation and cut-off by regulator in 10-100us interval)

                                  -self-initiated reset, control and protection protocols with cabinet-controller

                                  -fault signal (at fault and /or emergency state) which is interrupt demand for immediate                                               contactor override (bypass) of the regulator

             -control and protection of the cabinet:

                          -cabinet-controller PRO-JRx with diagnostics and memory of faulty/trip states, operation-                                          hourcounters for each intensity

                                  - bypass funktion-bypass mode of operation in case of fault or protection tripping

                                  -controlled temperature-heating (100W with thermostat) and cooling (filtrated inlet of air and                   force- ventilated outlet with thermostat), alarm thermostat

                                  -transient overvoltage atenuation and suppresion through excessive energy drain

                                  -fast overcurrent and short-circuit protection, selectivity with distribution fuses

                                  -double atenuation (filtering) of harmonic distortions and transients ( THDu < 0,2 % )

                                  -protection system TN-C

                 -standard outline of cabinet:

                          -for open-air mounting (reinforced polyester cabinet-IP43, grounded metal parts, isolation casing

                                  -nominal power outlines: mark x=1 – 3x2kVA;x=2 – 3x4kVA;x=3 – 3x7kVA;x=4 – 3x12kVA

             -standard delivery scope:

                                  -fco production plant Rakitje, tested, packed, loaded, with test protocols, Certficates and                                            Declaration of Conformity

                                  -two-year guarantee with standard conditions for our products

                                  -service and spare parts in guarantee period and next 7 years

                 The additional(optional) functions are:

                                  -metering of energy-auxiliary equipment**

                                  -regulation localy:

                                                   -PWM (pulse-width-modulated) regulation of voltage by series compensated ac                                                               switching of  auxiliary transformer, phase-uncoupled (star)

                                                   -continual in standard range from 50% (60% for metalhalide) to 100% of relative                                                               intensity; with three programmable levels 100%, 75% and 50% of relative intensity (or                                                upon  demand), with soft transients between levels*

                                                   -reduced intensity operation intervals are programmable and adjustable with up to                                        three  annual programms

                                                   -extended range of regulation(min. 35%)

                                                   -user can change parameters with lap-top computer thru RS232

                                                   -by commands from traffic control system depending on traffic density and visibility

                                  -switching and regulation remotely:

                                                   -cabinet-controler PRO-JRr (+GSM/Ethernet/WiFi modul-auxiliary equipment**)

                                  - limitMAX = adjustable limitation of maximal operating output voltage in level 100%  -                                 - stabMAX = stabilization of output voltage at level 100% on 230VRMS (or on demand))

                                  - stabREG = stabilization of output voltage at level 100% on adjustable level and automatic                                                                adjustment of regulation range

                                  - saveENERGY-1 = saved energy is calculated by cabinet-controller on the basis of operation-                                                  hour counters and level of regulation (% of unregulated energy)

                                  - saveENERGY-2 = saved energy is calculated by cabinet-controller on the basis of signal from                                               energy- meter; an option with three-phase energy meter with pulse=f (energy) output.

                                  - lampOUT   = signal of excessed lamp-failure % (only saveENERGY-2)

                                  - trueRMSV =  measurement of true RMS voltage at regulated output of the cabinet with display                                               at cabinet-controler

- system of protection is made according to design/demandl(differetial current relays, magnetic- thermic circuit-breakers,lthermic fuses with disconnecting bases etc)

             The additional (optional) outlines are:

                                  -for indoor mounting (steel cabinet with polyurethane orr epoxy-coating-IP43, grounded metal                                  parts)

                                  -IP54 for all outlines

                                  -nominal power outlines: mark x=2a – 3x5kVA; x=3a – 3x10kVA

                 The additional(optional) delivery scope:

                          -free-at-border, tested, packed, loaded, with test protocols, Certficates and Declaration of                                            Conformity

                                  -testing of function after mounting and trial operation, issuing of protocols                                                      -service on demand during guarantee period

                                  -regular service during guarantee period

                 The additional (optional) services on demand:

                          -consulting for designers/consultants, investor technical stuff, maintenance personell-lecture                                  and practice



             The cabinets comply/conform to valid Croatian standards and regulations: HRN EN 50274:2002, HRN EN 60439-1:1999/A1:2004,HRN EN 60947-4-3:2005, HRN EN 61000-3-2:2001 i HRN EN 61000-3-3:1997 , valid regulations and EU Directive 2004/108/EC. We issue production, testing and implementation certificates and declarations of conformity and quality after set-up and probe operation.





Technical data:



Nominal power: x=1—3x2kVA;x=2—3x4kVA;x=3—3x7 kVA;x=4 - 3x12 kVA

Supply voltage: 3x400/230 V,50 Hz

Supply voltage tolerrance:0,85 – 1,1 Un

Regulation range(span): PWM 50(60) - 100%  relative intensity NaV(HQI)

Regulation accuracy:+/- 0,2%

Total termic loss:< 3%

Ambient temperature: –25 to + 30 ^oC

Cooling:forced ventilation 30m3/h

Relative humidity: kl. F rel.h.(10-95%)

Cabinet:1130x1000x320 mm (reinforced polyester), IP43, mounting on base
